MANCHONS-FLASQUES CANNELÉS

Page 422 - MANCHONS-FLASQUES CANNELÉS & BAGUES DE BLOCAGE CANNELÉES

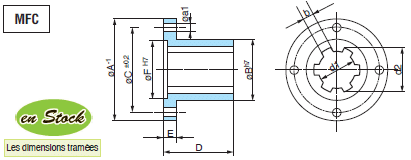

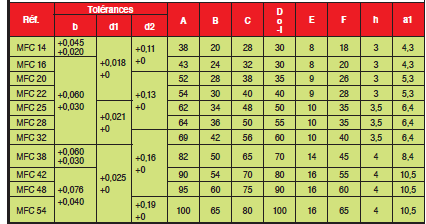

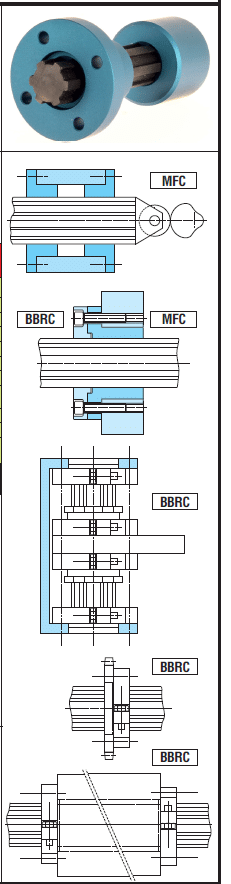

Grâce à leur flasque, ces manchons permettent une adaptation facile de pièces rapportées telles que pignons, engrenages, ou bien ils peuvent être installés à poste fixe et servir alors de guide pour arbre cannelé coulissant.
Trous indexés sur plein de dent.
Les emplois sont illimités.
Sur demande : en bronze, acier nitruré…

Désignation MFC Taille
Ex.: MFC32

Page 422 - MANCHONS-FLASQUES CANNELÉS & BAGUES DE BLOCAGE CANNELÉES
Page 422 - MANCHONS-FLASQUES CANNELÉS & BAGUES DE BLOCAGE CANNELÉES

BAGUES DE BLOCAGE CANNELÉES

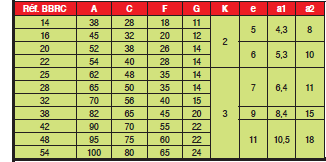

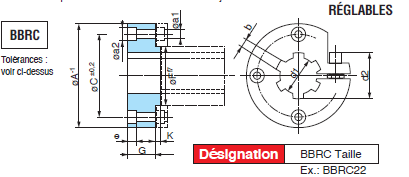

Ces bagues – qui peuvent être utilisées seules – sont conçues pour emploi combiné avec les manchons flasqués ci-dessus. Un centrage rigoureux est prévu à cet effet. Par action sur la vis, il est facile d’agir sur le diamètre des cannelures et d’obtenir soit un blocage total soit une possibilité de coulissement avec un jeu très réduit

Page 422 - MANCHONS-FLASQUES CANNELÉS & BAGUES DE BLOCAGE CANNELÉES
Page 422 - MANCHONS-FLASQUES CANNELÉS & BAGUES DE BLOCAGE CANNELÉES

Sur demande :
bronze – acier nitruré…

Bague cylindrique
avec lamages dans
l’épaisseur.

BBRC14 BBRC16 BBRC20 BBRC22 BBRC25 BBRC28 BBRC32 BBRC34 BBRC38 BBRC42 BBRC48 BBRC54 BBRCB14 BBRCB16 BBRCB20 BBRCB22 BBRCB25 BBRCB28 BBRCB32 BBRCB34 BBRCB38 BBRCB42 BBRCB48 BBRCB54 EBBRC14 EBBRC14B EBBRC16 EBBRC16B EBBRC20 EBBRC20B EBBRC22 EBBRC22B EBBRC25 EBBRC25B EBBRC28 EBBRC28B EBBRC32 EBBRC32B EBBRC38 EBBRC38B EBBRC42 EBBRC42B EBBRC48 EBBRC48B EBBRC54 EBBRC54B MFC14 MFC16 MFC20 MFC22 MFC25 MFC28 MFC28PT MFC32 MFC32L65D88 MFC38 MFC42 MFC48 MFC54 MFCB14 MFCB16 MFCB20 MFCB22 MFCB25 MFCB28 MFCB32 MFCB34 MFCB38 MFCB42 MFCB48 MFCB54
